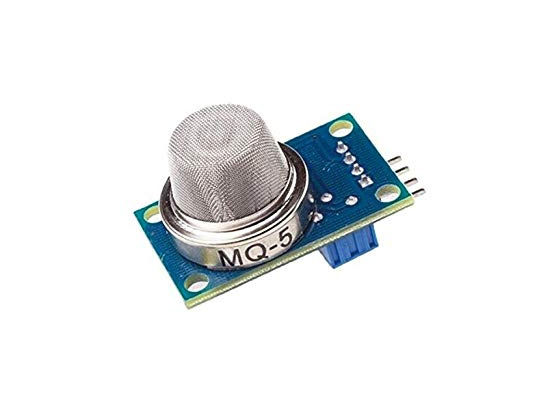

MQ-5 LPG Liquid Propane Methane Gas Sensor Module
4 in stock
Gas Sensor(MQ5) module is useful for gas leakage detection (in home and industry). It is suitable for detecting H2, LPG, CH4, CO, Alcohol. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by using the potentiometer
₹141.60 Price Including GST
4 in stock
CompareMQ-5 LPG Liquid Propane Methane Gas Sensor Module
Working voltage:DC 5V
Working Current: 150mA
DOUT: TTL output
AOUT: Analog output
Preheat time: Over 20s
Dimension: 32mm x 22m x 27mm(HIGH 27mm)
Hardware Overview
This is an Analog output sensor. This needs to be connected to any one Analog socket in Grove Base Shield. The examples used in this tutorial makes uses of A0 analog pin. Connect this module to the A0 port of Base Shield.
It is possible to connect the Grove module to Arduino directly by using jumper wires by using the connection as shown in the table below:
Hardware Overview
This is an Analog output sensor. This needs to be connected to any one Analog socket in Grove Base Shield. The examples used in this tutorial makes uses of A0 analog pin. Connect this module to the A0 port of Base Shield.
It is possible to connect the Grove module to Arduino directly by using jumper wires by using the connection as shown in the table below:
ArduinoGas Sensor
5V VCC
GND GND
NC NC
Analog A0 SIG
Datasheet :-MQ-5-Datasheet
